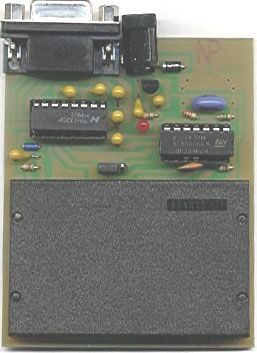

The MiniMax is a single purpose
card reader/writer. It requires a 6-12 volt center-positive power
supply and a serial input cable (Not included).
The input on the device is a standard 9-pin female DB connector.
MiniMax ISO7816 Phoenix and Smart Mouse Reader and Programmer
The Mini Max is the perfect Smartcard programming solution
for anyone needing a programmer in the United States or Canada.
All Mini Max Programmers
are professionally factory assembled in the United Kingdom by the well
known Maxking Interfaces. Mini Max Programmers are the programmer of choice
for residents of the United States and Canada. The Mini Max is extremely
rugged and simple to use as well as affordable. This programmer is configured
to be used at a clock speed of 3.57 mhz which meets the needs for all Iso7816
Smart Cards used in the U.S. and Canada. We are an Official Distributor
for Maxking Interfaces.
This "MiniMax" Smart card
programmer can be used to read and write most of all async - Smartcards
(Processor cards). It is jumper-selectable in either Smart mouse
or Phoenix mode.
Shorting pin 1 + 2 = Smart
Mouse
Shorting pin 2 + 3 = Phoenix
Best Price on the Net for only $100.00 US including shipping!
